ORM (doctrine)

Slick/Orm is a lightweith module that will provide Migrations, Database Abstraction (DBA), and Object-Relational Mapping (ORM) features utilizing the doctrine/migrations and doctrine/orm packages.

Install

To use Slick/Orm in your application, you need to install it via Composer. To complete the module setup, you also need to enable it. This ensures that all necessary files and configurations for migrations and ORM entity managers are properly set up.

composer require slick/orm

bin/console enable orm

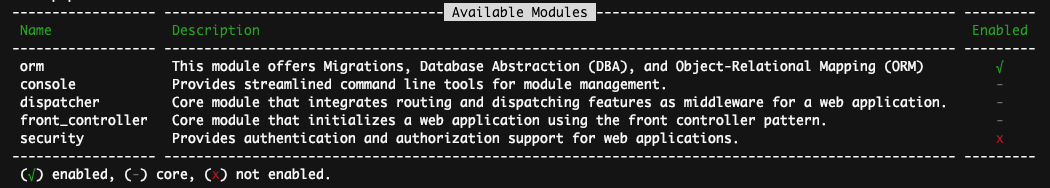

After enabling the module the list of modules should be like is shown bellow:

bin/console modules

ORM configuration

When you enable the module for the first time, a config/modules/orm.php file is automatically generated with the basic settings needed to start working with Doctrine ORM. This includes configuring an EntityManager as a dependency, ready to be injected into your services.

Default configuration

By default, an SQLite database is set up and will be stored in the data/database.sqlite file in your project root. The module will also scan the /src/Domain folder of your project for Doctrine attributes in your entity classes. The configuration file will look like this:

/**
 * This file is part of orm module configuration.
 */

 use Slick\Orm\Infrastructure\Persistence\ManagerSettings;

return [
    "databases" => [
        "default" => [
            "url" => isset($_ENV["DATABASE_URL"]) ? $_ENV["DATABASE_URL"] : 'pdo-sqlite:///data/database.sqlite',
            "devMode" => getenv("APP_ENV") === "develop",
            'entityPaths' => ["/src/Domain"],
            'implDriver' => ManagerSettings::ATTRIBUTE_DRIVER_IMPL
        ]
    ],
    "types" => [
    ]
];

Database connection string

In most cases, you’ll need to configure a different database for your application. To do this, edit your .env file, uncomment the DATABASE_URL entry, and add your database connection details. Keep in mind that database URLs often contain sensitive information, so they should not be included in your codebase. For more details on environment configuration, refer to the Slick .env support page.

# Data base DSN for the default connection.
# This will be used in the config/modules/orm.php settings file.

DATABASE_URL=pdo-mysql://user:pass@localhost:3306/database?charset=utf8

Change the DATABASE_URL as shown above.

Entity class files locations

By default, the /src/Domain folder is scanned for entity metadata. However, you can change this folder or add additional ones. For instance, if you have entity classes in both src/Entities and src/Models, you can update your config/modules/orm.php configuration as follows:

return [
    "databases" => [
        "default" => [
            "url" => isset($_ENV["DATABASE_URL"]) ? $_ENV["DATABASE_URL"] : 'pdo-sqlite:///data/database.sqlite',
            "devMode" => getenv("APP_ENV") === "develop",
            'entityPaths' => ["/src/Entities", "/src/Models"], // <- change this
            ...
        ]
    ],
    ...
];

Metadata driver

You can specify witch metadata implementation driver you want to use. Possible values are ManagerSettings::ATTRIBUTE_DRIVER_IMPL for attibutes driver and ManagerSettings::XML_DRIVER_IMPL for xml driver. Remember that you can only use one driver implementation with an entity manager configuration or database connection.

return [
    "databases" => [
        "default" => [
            "url" => isset($_ENV["DATABASE_URL"]) ? $_ENV["DATABASE_URL"] : 'pdo-sqlite:///data/database.sqlite',
            "devMode" => getenv("APP_ENV") === "develop",
            'entityPaths' => ["/src/Domain"],
            'implDriver' => ManagerSettings::XML_DRIVER_IMPL,
            ...
        ]
    ],
    ...
];

Multiple database connections

You can set up multiple connections, each with its own EntityManager. To do this, you’ll need to add new entries under the databases key. Here’s an example:

return [
    "databases" => [
        "default" => [
            "url" => isset($_ENV["DATABASE_URL"]) ? $_ENV["DATABASE_URL"] : 'pdo-sqlite:///data/database.sqlite',
            'entityPaths' => ["/src/Domain"]
            ...
        ],
        "sales" => [
            "url" => 'pdo-pgsql://user:pass@localhost:5432/sales',
            'entityPaths' => ["/src/Sales/Domain"]
            ...
        ]
    ],
    ...
];

ORM configuration reference

Here’s a breakdown of the configuration properties for the module:

Adding custom types

Doctrine allows you to create custom mapping types, which can be useful if you need a specific type that isn’t provided by default or if you want to replace the existing implementation of a mapping type.

To create a new mapping type, subclass Doctrine\DBAL\Types\Type and implement or override the necessary methods to suit your needs. Here is an example:

// src/Infrastructure/Persistence/DoctrineEmail.php
namespace App\Infrastructure\Persistence;

use App\Domain\User\Email;
use Doctrine\DBAL\Platforms\AbstractPlatform;
use Doctrine\DBAL\Types\StringType;

final class DoctrineEmail extends StringType
{
    public function convertToDatabaseValue(mixed $value, AbstractPlatform $platform): ?string
    {
        return is_null($value) ? null : (string) $value;
    }

    public function convertToPHPValue(mixed $value, AbstractPlatform $platform): ?Email
    {
        return is_null($value) ? null : new Email($value);
    }

    public function getSQLDeclaration(array $column, AbstractPlatform $platform): string
    {
        $column["length"] = 255;
        return parent::getSQLDeclaration($column, $platform);
    }
}

The example above converts an Email object to plain text when persisting it to the database and converts the text back into an Email object when retrieving it. This custom type extends Doctrine\DBAL\Types\StringType, which is a subclass of Doctrine\DBAL\Types\Type.

To register your custom type with Doctrine, you need to add it to the list of types used by Doctrine. Edit the config/modules/orm.php settings file and add the following entry to the types array:

use App\Infrastructure\Persistence\DoctrineEmail;
use Slick\Orm\Infrastructure\Persistence\ManagerSettings;

return [
    "databases" => [
        "default" => [
            "url" => ...
        ]
    ],
    "types" => [
        "Email" => DoctrineEmail::class
    ]
];

After this you can use the Email as a property type.

namespace App\Domain;

use App\Domain\User\Email;
use Doctrine\ORM\Mapping as ORM;

#[ORM\Entity]
#[ORM\Table(name: 'users')]
class User
{

    #[ORM\Id]
    #[ORM\Column(name: 'id', type: 'integer')]
    #[ORM\GeneratedValue]
    private int|null $userId = null;

    #[ORM\Column]
    private string $name

    #[ORM\Column(type: 'Email', unique: true, nullable: false)]
    private Email $email

    ...
}

Using the Entity Manager and DBAL Connection

When the slick/orm module is enabled, it automatically adds the EntityManager and Connection for the default database connection to the dependency injection container, making them ready for use. Below is an example of a UserRepository that utilizes the EntityManager as a dependency:

namespace App\Infrastructure\Persistence;

use App\Domain\User;
use App\Domain\UserRepository;
use Doctrine\ORM\EntityManagerInterface;

final readonly class DoctrineUserRepository implements UserRepository
{

    public function __construct(private EntityManagerInterface $entityManager) // add the dependency
    {}

    public function withId(int $userId): User
    {
        $user = $this->entityManager->find(User::class, $userId); // used here
        if ($user instanceOf User::class) {
            return $user;
        }

        throw new RuntimeException("User not found.");
    }
}

The same principle applies to the DBAL Connection:

namespace App\Infrastructure\Persistence;

use App\Domain\UserList;
use Doctrine\DBAL\Connection;

final readonly class DoctrineUsersList implements \IteratorAggergate, UserList
{
    private array $data = [];

    public function __construct(private Connection $connection) // add the dependency
    {
        $sql = "SELECT * FROM users";

        $stmt = $$this->connection->query($sql);
        while (($row = $stmt->fetchAssociative()) !== false) {
            $this->data = row;
        }
    }

    ...

}

ORM Console commands

slick/orm console is configured with the Doctrine console command.

Here is a break down of the available console commands:

• dbal:import Import SQL file(s) directly to Database.
• dbal:run-sql Executes arbitrary SQL directly from the command line.
• orm:clear-cache:metadata Clear all metadata cache of the various cache drivers.
• orm:clear-cache:query Clear all query cache of the various cache drivers.
• orm:clear-cache:result Clear result cache of the various cache drivers.
• orm:generate-proxies Generates proxy classes for entity classes.
• orm:run-dql Executes arbitrary DQL directly from the command line.
• orm:schema-tool:create Processes the schema and either create it directly on EntityManager Storage Connection or generate the SQL output.
• orm:schema-tool:drop Processes the schema and either drop the database schema of EntityManager Storage Connection or generate the SQL output.
• orm:schema-tool:update Processes the schema and either update the database schema of EntityManager Storage Connection or generate the SQL output.

Migrations

The primary purpose of using doctrine/migrations in a project is to manage and apply database schema changes in a controlled and versioned way. This tool allows developers to track, share, and implement database updates consistently across different environments, ensuring that the schema stays in sync with the application’s codebase. Additionally, it provides the ability to easily roll back changes when necessary, making it essential for maintaining database integrity and supporting team collaboration.

Default configuration

When enabling the slick/orm module, the config/migrations.json settings file is generated with default configurations. Additionally, the lib/Migrations directory is created, as specified in the settings file, and is designated as the location for migration classes. Below is the JSON output of the default migrations settings file:

{
    "table_storage": {
        "table_name": "doctrine_migration_versions",
        "version_column_name": "version",
        "version_column_length": 192,
        "executed_at_column_name": "executed_at",
        "execution_time_column_name": "execution_time"
    },
    "migrations_paths": {
        "App\\Migrations": "..\/lib\/Migrations"
    },
    "all_or_nothing": true,
    "transactional": true,
    "check_database_platform": true,
    "organize_migrations": "none",
    "connection": null,
    "em": null
}

Console commands

Here is a break down of the available console commands:

• migrations:diff Generate a migration by comparing your current database to your mapping information.
• migrations:dump-schema Dump the schema for your database to a migration.
• migrations:execute Execute one or more migration versions up or down manually.
• migrations:generate Generate a blank migration class.
• migrations:latest Outputs the latest version
• migrations:list Display a list of all available migrations and their status.
• migrations:migrate Execute a migration to a specified version or the latest available version.
• migrations:rollup Rollup migrations by deleting all tracked versions and insert the one version that exists.
• migrations:status View the status of a set of migrations.
• migrations:sync-metadata-storage Ensures that the metadata storage is at the latest version.
• migrations:version Manually add and delete migration versions from the version table.
